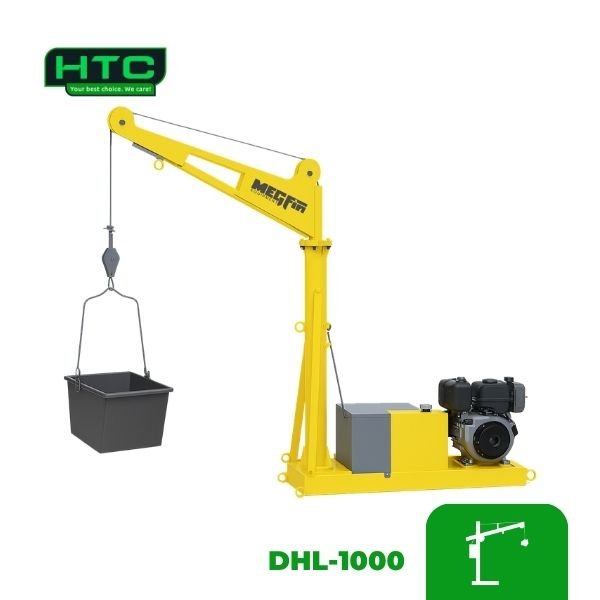

FEATURES OF MEGFIN MINI LIFTER DHL-1000:

The MEGFIN Mini Lifter (DHL-1000) provides exceptional heavy-duty material hoisting performance for tall building structures. To start with, this high-capacity machinery handles a massive 1000 kg rated load. Furthermore, the integrated containment attachment features a spacious 120 L bucket capacity for loose aggregates or wet concrete. Afterwards, a dependable 10 HP 186FS air-cooled diesel engine drives the internal mechanical systems efficiently.

Consequently, it generates immense hydraulic pressure to hoist heavy materials smoothly using a manual pull starting mode. Because the premium design incorporates an agile 360-degree maximum rotation angle, operators can swing loaded materials directly onto upper scaffolding decks safely. In addition, the long structural frame utilizes a precise 1.2 m arm length to maintain safe clearance from exterior building walls. Alternatively, the hoist achieves a tall 25 m rated lifting height to service multi-story construction zones easily. Moreover, a heavy-duty hydraulic circuit pumps fluid through a large 25 mL/r hydraulic pump displacement and a 4000 mL/r hydraulic motor displacement simultaneously.

Therefore, buying this MEGFIN diesel mini lifter remains the smartest choice for commercial concrete and masonry contractors. Ultimately, it makes vertical material transport highly efficient.

Specifications

• Model: DHL-1000

• Rated Load Capacity: 1000 kg (1 Tonne)

• Bucket Capacity: 120 L

• Rated Lifting Height: 25 m

• Structural Arm Length: 1.2 m

• Power Source: 186FS Air-Cooled Diesel Engine

• Engine Power Output: 10 HP

• Engine Starting Mode: Manually (Recoil/Pull Start)

• Maximum Rotation Angle: 360°

• Hydraulic Pump Displacement: 25 mL/r

• Hydraulic Motor Displacement: 4000 mL/r

• Balancing Valve Flow Rate: 100 L/min

• Total Machine Weight: 320 kg

• Packing Dimensions (L x W x H): 1370 x 710 x 750 mm
