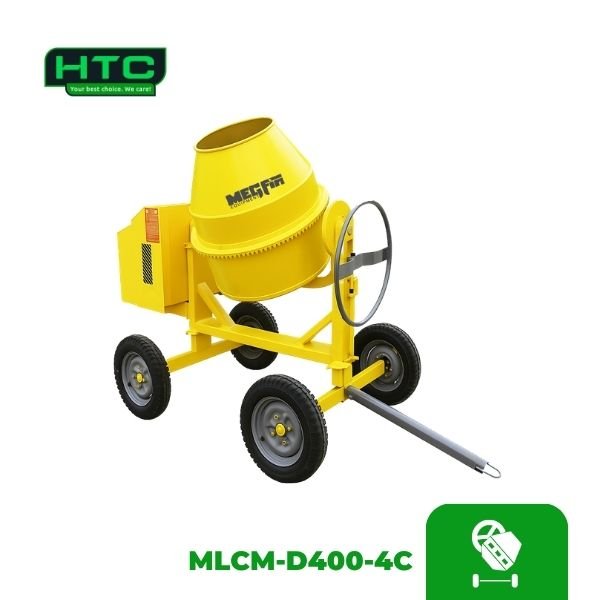

FEATURES OF MEGFIN MANUAL LOAD CONCRETE MIXER MLCM-D400-4C:

The MEGFIN Manual Load Concrete Mixer (MLCM-D400-4C) delivers reliable diesel performance for challenging construction projects. To start with, this large unit features a spacious 400L drum capacity that yields 320L of fresh concrete. Furthermore, operators can mix one full 50kg bag of cement during every single batch.

A robust 6HP air-cooled diesel engine (178FS) drives the system smoothly. Because this machine runs on diesel fuel, it provides dependable torque on remote sites without requiring grid power. In addition, the durable drum uses a 4mm thick bottom plate to withstand constant, abrasive aggregate wear. Consequently, your building crew can easily achieve a high output of up to 6 cubic meters per hour. Moreover, the strong chassis features four stable wheels for balanced towing and steady placement across rugged job sites. Therefore, buying this MEGFIN diesel concrete mixer remains the smartest choice for professional contractors. It maximizes site independence and keeps your daily material mixing highly efficient.

Specifications

• Model: MLCM-D400-4C

• Drum Capacity: 400 L

• Mixing Capacity: 320 L

• Productivity Output: 5 – 6 m³/h

• Batch Capacity: 1 Bag of Cement (50 kg)

• Drum Rotation Speed: 25 – 30 rpm

• Drum Metal Thickness: 3 mm Upper / 4 mm Bottom

• Drum Dimensions: 850 x 900 mm

• Power Source: Air-Cooled Diesel Engine 178FS (6 HP)

• Tyre Size and Quantity: 4 x (4.00-12)

• Total Machine Weight: 310 kg

• Overall Dimensions (L x W x H): 2100 x 1200 x 1700 mm

• Packing Dimensions (L x W x H): 1960 x 960 x 1200 mm
