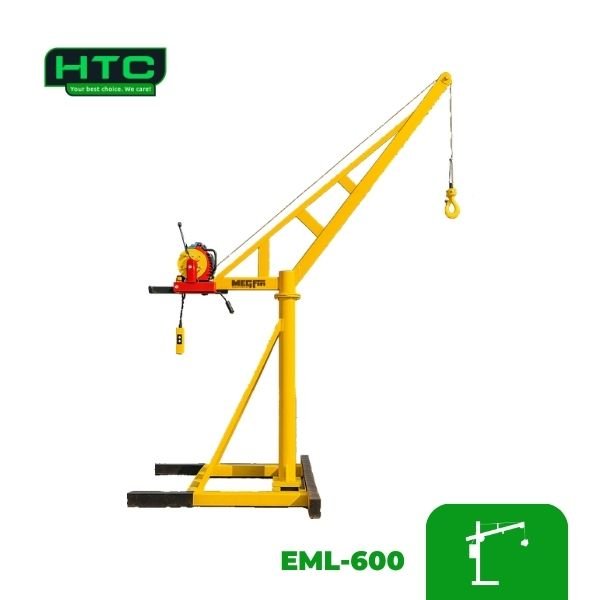

FEATURES OF MEGFIN ELECTRIC MINI LIFTER EML-600:

The MEGFIN Electric Mini Lifter (EML-600) provides exceptional high-rise material hoisting performance for tight urban construction spaces. To start with, this highly versatile system supports a heavy 600 kg payload during double rope setup. Furthermore, the configuration adapts easily to a 400 kg capacity during single rope operation.

Afterwards, a high-torque 2.3 KW aluminum winch motor drives the mechanical steel cable smoothly. Consequently, the lift line achieves a rapid hoisting velocity of 12 to 14 meters per minute. Because the heavy-duty arm structure rotates a full 360-degree maximum angle, operators can safely swing hoisted concrete buckets directly onto scaffolding decks. Additionally, the durable hoist line utilizes a premium 25-meter galvanized, rotation-resistant steel wire rope to prevent twisting under full loads.

Alternatively, the machine anchors securely on your building floors using a stable 1000 x 1000 mm pedestal made from 8# channel steel. Moreover, the compact frame maintains an easy-to-move 130 kg total weight for fast relocation to higher floor levels as your building grows. Therefore, buying this MEGFIN electric mini lifter remains the smartest choice for multi-story masonry and concrete contractors. Ultimately, it makes vertical material transport highly efficient.

Performance & Capacities

• Model: EML-600

• Maximum Payload (Double Rope): 600 kg

• Maximum Payload (Single Rope): 400 kg

• Lifting Height Output (Double Rope): 12.5 m

• Lifting Height Output (Single Rope): 25 m

• Maximum Rotation Angle: 360°

Electric Winch System

• Motor Power Output: 2.3 KW

• Electrical Voltage Options: 220V or 380V (50Hz / 60Hz compatible)

• Lifting Cable Speed: 12 – 14 m/min

• Wire Rope Total Length: 25 m

• Wire Rope Cross Diameter: 6 mm

• Wire Rope Construction: Galvanized, Rotation-Resistant, Steel Wire Rope

• Winch Motor Housing Type: Aluminium Winch Motor

Host Machine Structure

• Pedestal Structural Material: 8# Channel Steel

• Pedestal Base Dimensions: 1000 x 1000 mm

• Pillar Structural Height: 130 mm

• Pillar Structural Thickness: 3.5 mm

• Boom Arm Total Length: 2.4 m

• Boom Arm Stretching Distance: 1.3 m

• Total Machine Weight: 130 kg
