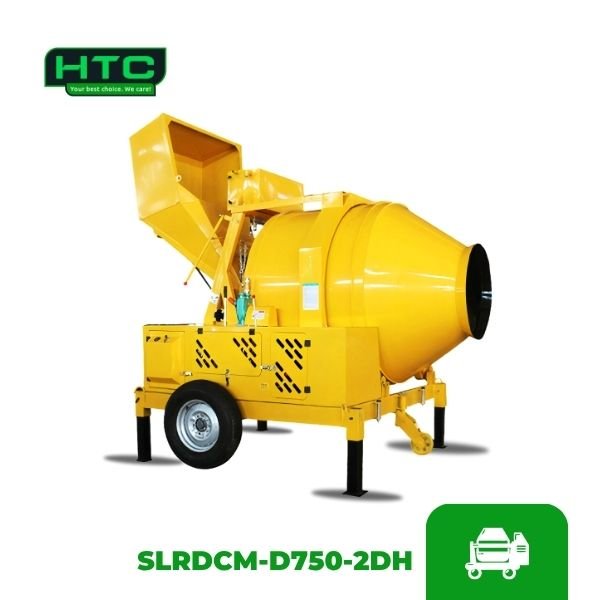

FEATURES OF MEGFIN REVERSING DRUM CONCRETE MIXER SLRDCM-D750-2DH:

The MEGFIN Reversing Drum Concrete Mixer (SLRDCM-D750-2DH) delivers industrial-grade output for massive infrastructural developments. To start with, this heavy-duty machine features a giant 1200L loading capacity that yields 750L of discharged concrete. Furthermore, operators can mix an incredible five full 50kg bags of cement during every single batch.

A premium 25HP water-cooled Changchai diesel engine (L24M) powers the immense mechanism smoothly. Because this heavy mixer utilizes a high-performance 25mL/r hydraulic pump displacement, the drum rotates and tilts with absolute precision. In addition, the durable mixing drum features an extra-thick 8mm steel wall to safely tumble large aggregate up to 80mm in size. Consequently, your construction crew can easily maintain a continuous productivity output of up to 30 cubic meters per hour. Moreover, the massive 2100 kg industrial chassis rests on rugged 6.50-16 tires for balanced towing and site placement. Therefore, buying this MEGFIN reversing drum concrete mixer remains the smartest choice for large-scale engineering contractors.

Specifications

• Model: SLRDCM-D750-2DH

• Discharging Capacity: 750 L

• Loading Capacity: 1200 L

• Productivity Output: 22 – 30 m³/h

• Batch Capacity: 5 Bags of Cement (50 kg per bag)

• Drum Rotation Speed: 13 rpm

• Drum Metal Thickness: 8 mm

• Mixing Drum Dimensions: 1580 x 2270 mm

• Maximum Aggregate Size: 80 mm

• Power Source: Water-Cooled Changchai Diesel Engine L24M (25 HP)

• Hydraulic Pump Displacement: 25 mL/r

• Tyre Size: 6.50-16

• Total Machine Weight: 2100 kg

• Overall Dimensions (L x W x H): 3600 x 2400 x 3200 mm

• Packing Dimensions (L x W x H): 2500 x 2200 x 2500 mm
