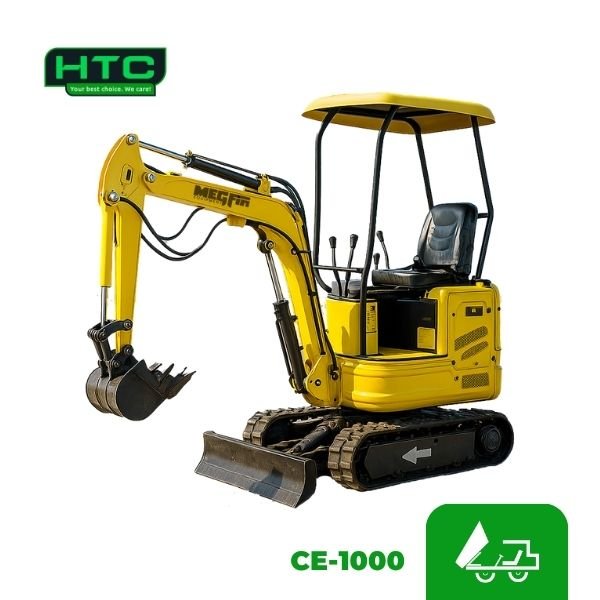

FEATURES OF MEGFIN CRAWLER EXCAVATOR CE-1000:

The MEGFIN Crawler Excavator (CE-1000) provides exceptional agility for tight work areas. To start with, this micro-sized machine features a lightweight 1000 kg weight. Furthermore, this smart design protects sensitive lawns from heavy ground damage.

Afterwards, the hydraulic arm exerts a strong 9.6 KN digging force. Consequently, it cuts through compacted dirt effortlessly. Because the body width is only 880mm, the unit fits through narrow garden gates. In addition, durable rubber tracks allow the machine to climb slopes easily.

Alternatively, your crew can reach a deep 1650mm digging depth very quickly. Moreover, a tight 784mm tail swing radius prevents accidental wall damage during rotation. Therefore, buying this MEGFIN micro excavator remains the smartest choice for urban contractors. Ultimately, it makes backyard utility trenching highly efficient.

Specifications

• Model: CE-1000

• Machine Operating Weight: 1000 kg

• Overall Dimensions (L x W x H): 2770 x 880 x 1490 mm

• Maximum Digging Force: 9.6 KN

• Maximum Digging Depth: 1650 mm

• Maximum Vertical Digging Depth: 1375 mm

• Maximum Digging Height: 2610 mm

• Maximum Dumping Height: 1850 mm

• Maximum Digging Reach on Ground: 2850 mm

• Tail Swing Radius: 784 mm

• Minimum Swing Radius: 1330 mm

• Boom Structural Length: 1350 mm

• Engine Power Output: 9.2 KW (approx. 12 HP)

• Chassis Slewing Speed: 13 rpm

• Track Travel Speed: 0 – 2 km/h

• Maximum Gradeability: < 25°

• Crawler Track Width: 130 mm

• Excavator Bucket Width: 350 mm

• Excavator Bucket Capacity: 0.025 m³
