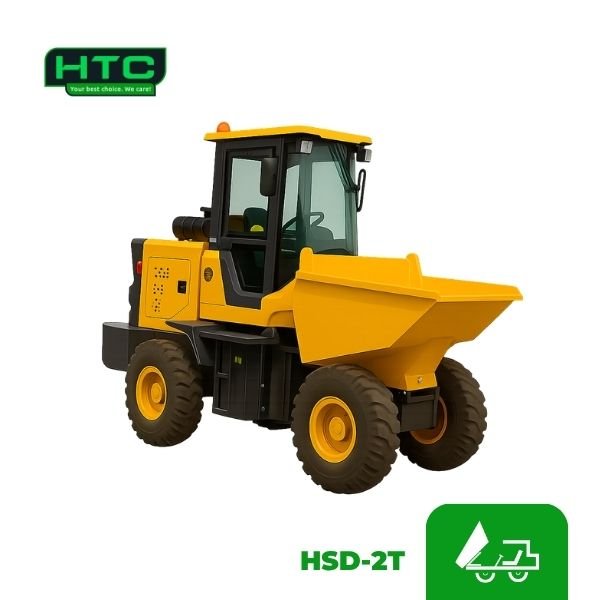

FEATURES OF MEGFIN HYDRAULIC SITE DUMPER HSD-2T:

The MEGFIN Hydraulic Site Dumper (HSD-2T) provides intense material handling strength for heavy-duty civil engineering projects. To start with, this high-capacity machine carries a massive 2000 kg rated payload. Furthermore, the extra-large bucket holds a 1200 L rated capacity to move massive piles of aggregate.

Afterwards, choice premium power plants like the 38 KW water-cooled Quanchai or the 36 KW air-cooled Deutz diesel engine drive the mechanical hydraulic systems smoothly. Consequently, the heavy vehicle conquers steep site inclines with an impressive 35-degree gradeability limit. Because the rugged chassis utilizes a true 4×4 drivetrain with 3 forward and 2 reverse gears, the machine never gets stuck in deep, wet mud. In addition, the flexible articular frame structure maneuvers cleanly through narrow passages with a tight 4000mm turning radius. Alternatively, your operators can utilize a rapid 25 km/h maximum travel speed to finish bulk site transfers ahead of schedule.

Moreover, a robust hydraulic tipping system dumps full loads instantly on the heavy-duty 8.5-16 tires. Therefore, buying this MEGFIN 2-tonne site dumper remains the smartest choice for professional building contractors. Ultimately, it makes bulk concrete and earth transport highly efficient.

Specifications

• Model: HSD-2T

• Rated Payload: 2000 kg (2 Tonnes)

• Rated Bucket Capacity: 1200 L

• Rated Shovel Capacity: None

• Main Frame Structure: Articular Structure

• Tipping System: Hydraulic Operation

• Drivetrain Transmission: 4 x 4 (3 Forward + 2 Reverse Gears)

• Maximum Travel Speed: 25 km/h

• Maximum Gradeability: 35°

• Tyre Size: 8.5-16

• Minimum Turning Radius: 4000 mm

• Total Machine Weight: 2100 kg

• Overall Dimensions (L x W x H): 4400 x 1600 x 2650 mm

Diesel Engine Options

• Option 1 (Quanchai): Quanchai 490, Water-Cooled Diesel Engine – 38 KW (approx. 51 HP)

• Option 2 (Deutz): Deutz F3L912, Air-Cooled Diesel Engine – 36 KW (approx. 48 HP)
